Digital High Speed Cameras

Phantom Miro M320S

Small but sure

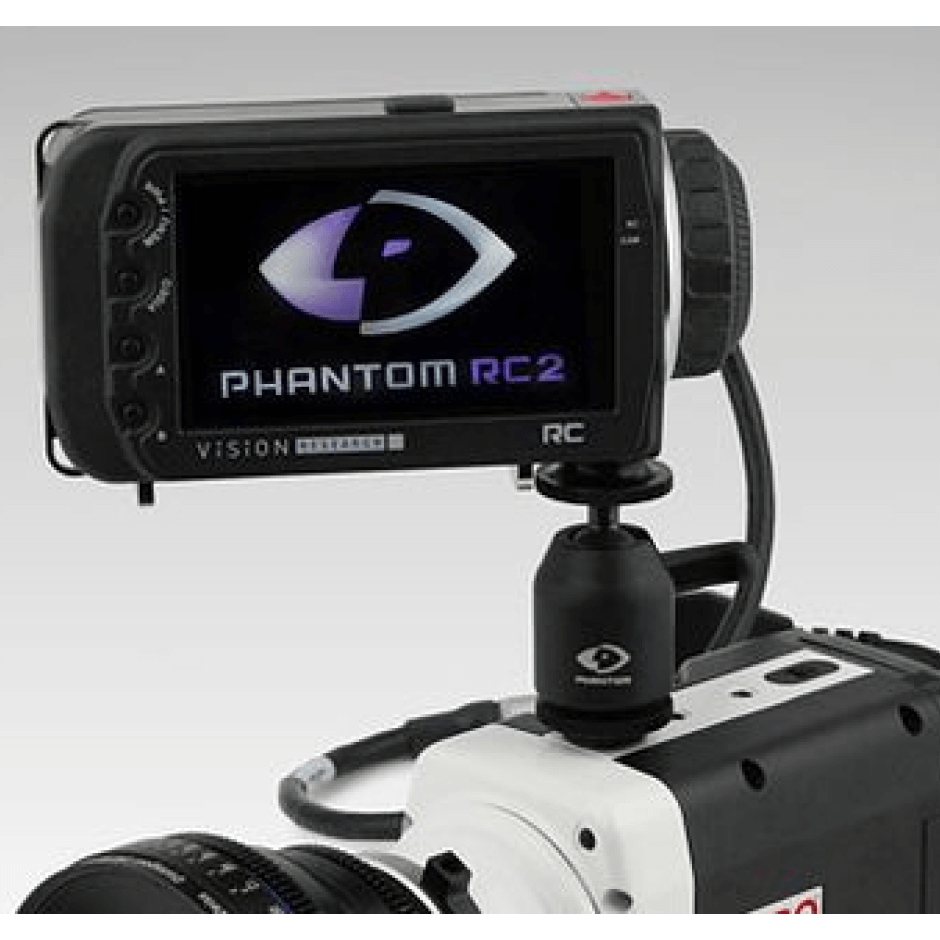

A rugged, high-speed digital imaging camera which comes with a Canon E, 35mm PL, Nikon F or C mount. While it is more compact than the v642, the imaging quality is exceptional and records at 1320 fps (full resolution). The camera can be mounted with several accessories, such as the Phantom RCU, which connects via HD-SDI and doubles as an external monitor.



  • The Miro M-series family follows the Phantom tradition in versatility by adapting to several imaging applications, and the M320S is no exception
  • With precise control over resolution, frame rate, exposure time and trigger point, this camera is ideal for applications ranging from industrial & scientific, to new media and TV production
  • The M320S is available with a variety of lens mounts, including Canon EOS, 35mm PL, Nikon-F, and C.
  • Optical low-pass filters are also available for applications where image quality is key.
  • The EOS mount enables the use of Canon’s EF and EF-S lenses, which can be controlled from the RCU, Phantom PCC software, or an aperture ring on the mount itself.
  • Remote control of aperture and focus is a huge benefit when cameras are remotely located and/or difficult to reach.

Workflow & Phantom CineFlash Storage Solution

  • CineFlash Storage Solution Directly record to up-to 12 Gigabytes of internal memory and preview the shot immediately by playing back over HD-SDI, or Gb Ethernet.
  • Save your shot by editing the clip, and quickly save to a Phantom CineFlash drive, via Ethernet or record the video playback to a separate device. Re-arm the camera and you’re ready for the next shot.
  • CineFlash drives are available in sizes up to 240 Gigabytes, and offer write speeds of 4GB/minute.
  • A full 12 GB cine will save in less than 3 minutes.
  • Once the drive is full, simply remove it from the camera and download Cine raw files via the CineFlash Dock or over the camera’s Ethernet. The CineFlash Dock connects to your computer via eSATA for speedy downloads.
  • Phantom Cine Raw files can then be processed using Phantom PCC to take further advantage of the Miro M-series’ advanced color processing, which includes user- defined color matrices, color temperature settings and tone curves.


  • The Miro 320S is based on a >2Mpx sensor with 3.2 Gpx/s throughput
  • 12-bit pixel depth, and uses micro-lenses on its custom-designed CMOS sensor to achieve exceptional light sensitivity
  • Available with 3GB, 6GB or 12GB of internal RAM Memory
  • Expected record times and maximum frame rates per resolution can be found in the tables to the right


  • The advanced features and small, lightweight form factor makes the Miro M and LC320S the most accessible Phantom high speed cameras available today
  • Compatible with a vast array of applications, the Miro can be used for scientific research, as a creative storytelling tool, and anywhere in between
  • The possibilities are endless with the Phantom Miro 320S at your fingertips


  • 12 bit, 2 Megapixel 35 mm CMOS sensor 1920 x1080 @ 1540 FPS 35mm depth of field ISO (ISO 12232 SAT method): Mono: 12,500 T; 5000 D, Color: 1600 T; 1250 D Compact, rugged design.
  • LC320S includes flip-out LCD touch screen for camera image monitoring and control.
  • PL, Nikon F, and Canon EOS lens mounts Phantom RCU compatible.
  • The Cine Flash module can be removed and inserted into the docking station connected to a computer making the content immediately available on the computer. The content can also be transferred from the camera to a computer and the images can be edited using the Phantom Camera Control software
