Digital High Speed Cameras

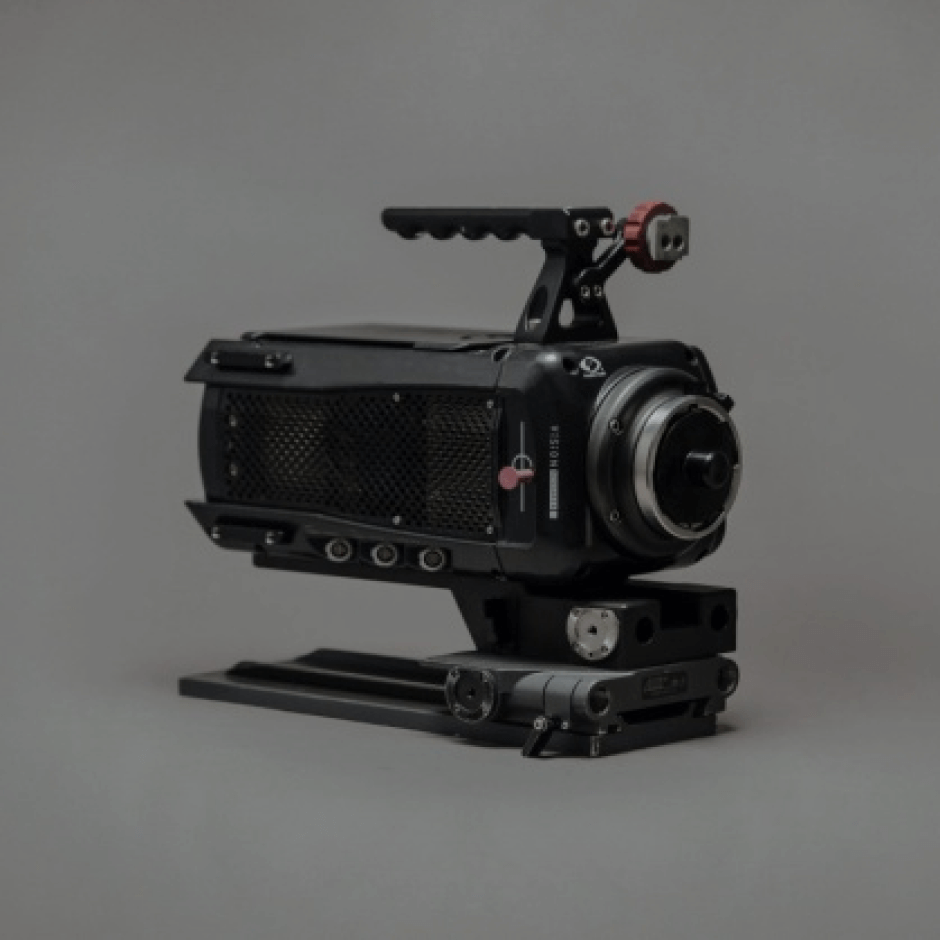

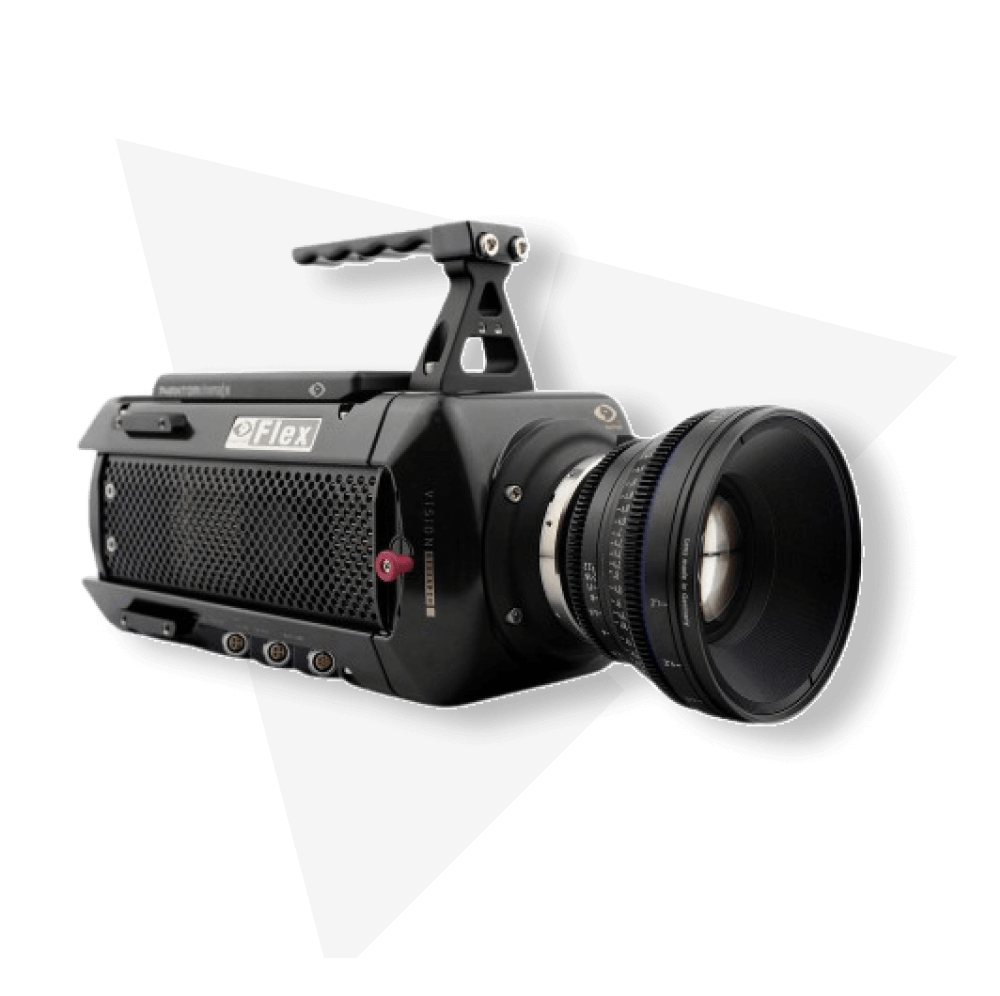

Phantom Flex 2K

When it's too fast to see, and too important not to.

This second-gen high-speed camera follows the legacy of the Phantom HD – a camera which pioneered high-speed imaging for television and motion picture production. The Phantom Flex provides exceptional flexibility in frame rate, workflow, lens format and overall storytelling ability.


Legacy of the groundbreaking Phantom HD

  • A camera that changed the world of high-speed imaging for television and motion picture production forever.
  • Provides exceptional flexibility in frame rate, workflow, lens format and overall storytelling ability.
  • It goes beyond HD and supports 4 megapixel imaging when the ultimate in image resolution is required.
  • Flex your creative muscle with a camera that can shoot from 10 frames-per-second to over 10,000 frames-per-second depending upon shooting mode and resolution.

Maximum control and flexibility

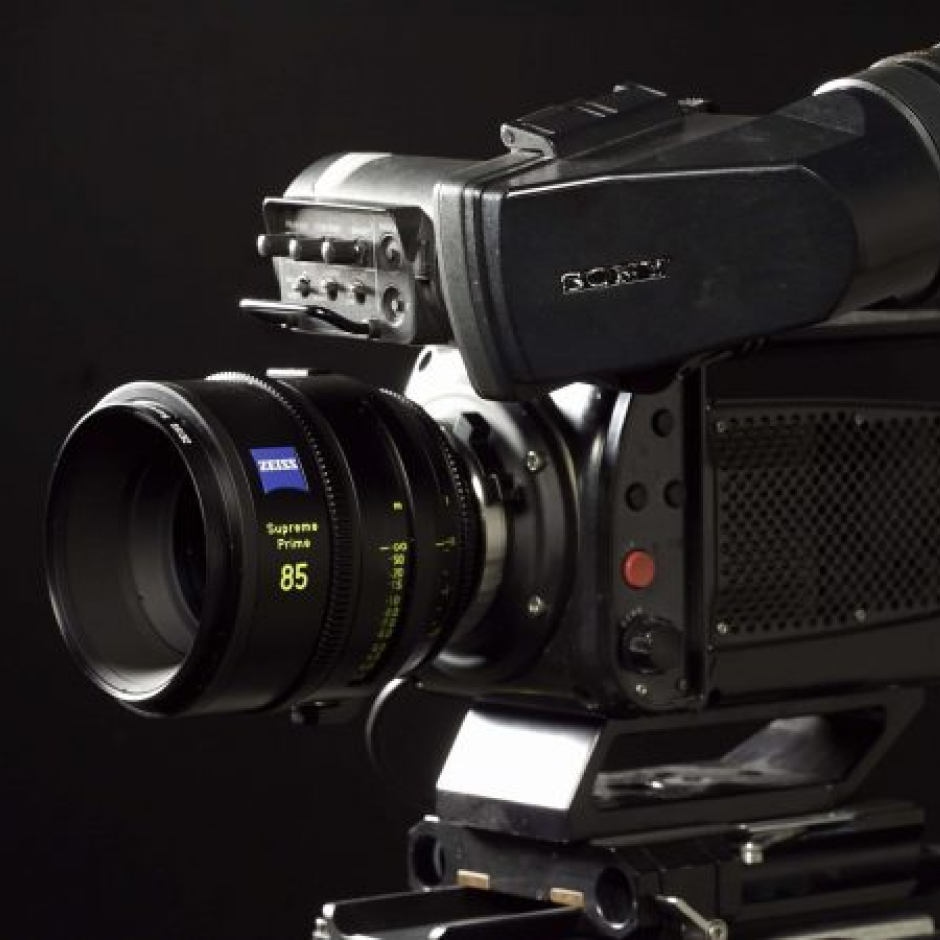

  • Flexible lens options let you choose between 35mm (PL, Canon EOS, Nikon F,Panavision), Super 16mm, and 2/3” lens alternatives.
  • User selectable shooting modes allow you to adapt the camera to the shooting environment.
  • In Standard Mode, the Phantom Flex is just like any other Phantom digital high-speed camera.
  • Shoot at resolutions up to 2560 x 1600 pixels at anywhere from 10 frames-per-second up to 1455 frames-per-second (fps).
  • As you reduce the resolution, the maximum speed increases – up to 2570 fps at 1920 x 1080, 5385 fps at 1280 x 720, and 10,900 fps at 640 x 480.

Multi-sampling image enhancement technology

  • Results in electronic image stability unprecedented in digital high-speed cameras.
  • Ultimate in image quality at speeds up to 1275 fps at 1920 x 1080 or 2660 fps at 1280 x 720 can be achieved.

Dual-link HD-SDI ports

  • Independent of the camera resolution.
  • This technique increases the dynamic range in the video signal and virtually eliminates edge artifacts sometimes seen in other Bayer pattern cameras.
  • If you choose to oversample when you are using a raw digital workflow, you can still get the benefits of increased dynamic range and fewer edge artifacts in a saved RGB file because the Phantom Camera Control software.


  • Shoot 10 – 1455 fps at 2560 x 1600
  • Shoot 10 – 2570 fps at 1920 x 1080
  • HQ Mode for ultimate image quality
  • Raw digital and ⁄or video workflow solutions
  • Flexible lens options
  • Up to 2,570 fps at 1920×1080 in Standard Mode 12-bit pixel depth
  • HQ Mode provides ultimate in image stability under changing shooting conditions

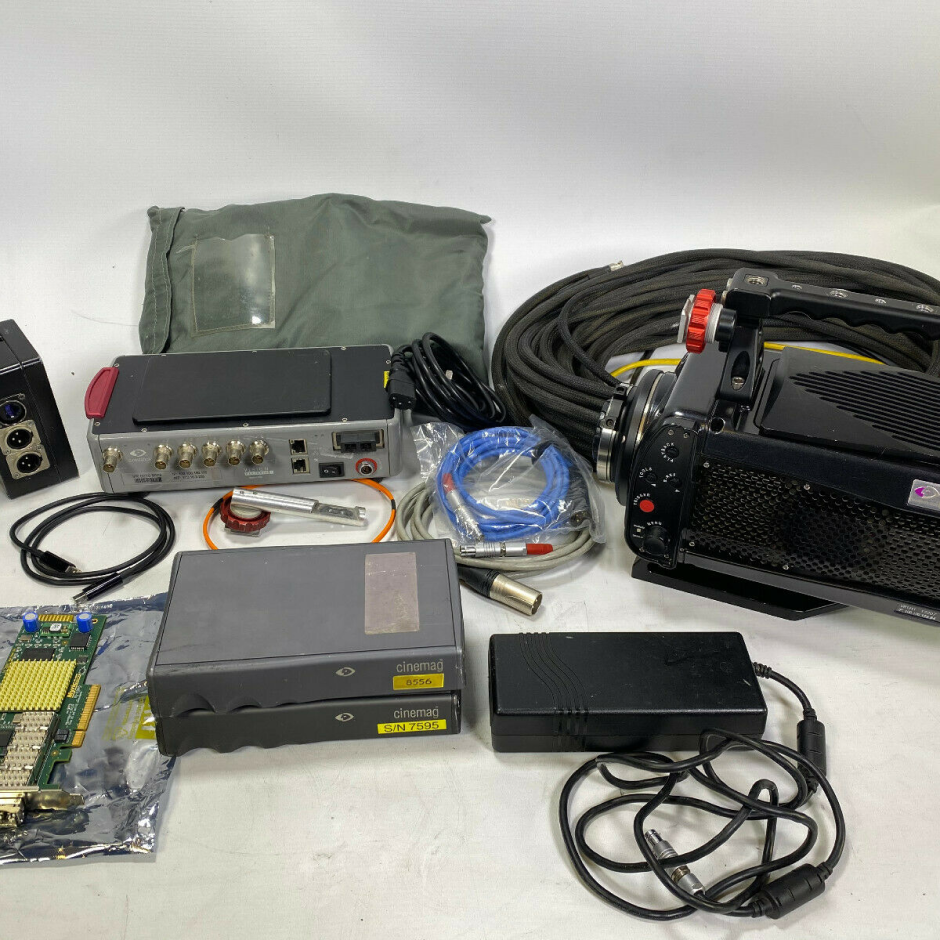

  • Phantom CineMag compatible, CineMag interface has field-replaceable pin array
  • 2 x 4:2:2 HD-SDI video ports, can be configured as dual-link 4:4:4 video,
    (4:4:4 not available at 60fps video formats)
