Lenses

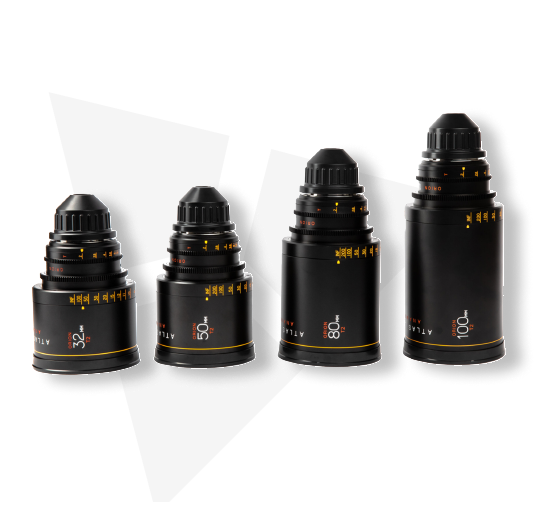

Atlas Orion Anamorphic

Universal filmmaking tool

Atlas Lens Co, Orion Series lenses deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and signature but controlled flare. These optical characteristics are now available as part of your cinematic storytelling toolkit with a mechanical functionality that won't leave you feeling confounded by compromise. Orion Series Anamorphic Lenses are built to be a universal filmmaking tool - ready for the latest Digital Cinema PL mount cameras.

ENQUIRE NOW

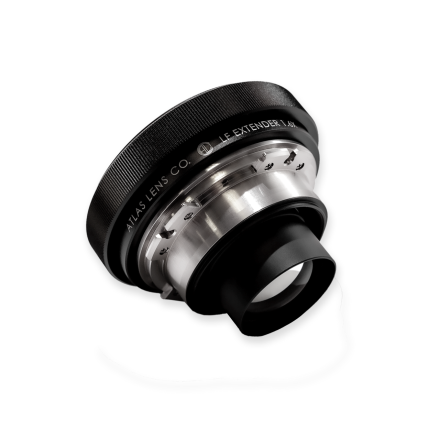

ATLAS 1.6x LF EXTENDER

Orion Series lenses are convenient, adaptable, dependable, and ergonomic, with the best of both vintage and modern features.

Orion Series lenses are readily and easily compatible with all mirrorless video / stills hybrid cameras via any PL to mirrorless camera adapter.

Whether your project requires you to shoot digital or film, the Orion Series offer the coverage you need with a 24.89mm x 18.66mm imaging area and easily covers full frame formats edge-to-edge with the Atlas LF Extender.

FEATURES OVERVIEW

  • 1.6x magnification
  • 1 and 1/3 stop light loss
  • Includes check gauge for rear element
  • Cover edge to edge on Arri LF, Red Monstro, Sony Full Frame, Kinefinity LF sensors, among others
  • If used with 35mm format (non FF/LF sensor), it extends your lenses by 1.6x (100 becomes 160, 80 becomes 127, etc.)

TECHNICAL SPECIFICATIONS

ORION SERIES
32 MM
50 MM
80 MM
100 MM
T - Stop range
T2-T16
T2-T16
T2-T16
T2-T16
Min Focus (F1)
1.75 FT
2.5 FT
3 FT
3.5 FT
Min Focus (M)
.53 M
.76 M
.91 M
1 M
Weight (LBS)
4.7 LBS
5 LBS
6 LBS
6.7 LBS
Weight (KG)
2.1 KG
2.3 KG
2.7 KG
3 KG
Length (IN)
6.7”
7”
8.5”
10”
Length (CM)
17
17.8
21.5
25.4
Front diameter
114 mm
114 mm
114 mm
114 mm
Image circle
31 mm
31 mm
31 mm
31 mm
Alexa sensor coverage
4:3 ANA (23.76 x 17.89mm)
4:3 ANA (23.76 x 17.89mm)
4:3 ANA (23.76 x 17.89mm)
4:3 ANA (23.76 x 17.89mm)
Red sensor coverage
MONSTRO 7K 6:5 ANA
MONSTRO 8K 6:5 ANA
MONSTRO 8K 6:5 ANA
MONSTRO 8K 6:5 ANA
